Fitur-fitur ini dikombinasikan dengan harga yang terjangkau, membuat solusi entry-level yang sempurna untuk tata letak situs atau survei as-dibangun. ES-65 juga dilengkapi Bluetooth, yang memungkinkan koneksi nirkabel untuk kolektor data hingga 10m. Juga tersedia dalam 2 “akurasi (ES-62)

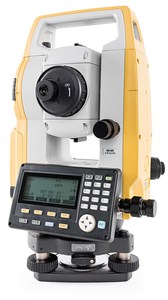

Feature Total Station Topcon ES-65 Series
● Fast and Powerful EDM
● 350 m Non-Prism (1,148 ft)
● 4000 m Prism (13,120 ft)
● Single keyboard with graphical back-lit LCD Display (ES-62 has 2 keyboards and displays)
● Battery 15 hours
● Rugged waterproof IP66 design
● Temperature specification -20° to +60° C
● Laser pointer (Red Coaxial)
● Bluetooth® communications (10 m distance to data collector)
● RS-232 Hirose connector
● USB 2.0 Host and Slave for easy data transfers
● Quick and easy Trigger Key
● Topcon style horizontal and vertical locking tangents
● 25 key keyboard, with 4-way directional back-lit arrow key
● TOPbasic on-board survey application software (GPT/GTS series
software)
● 10,000 point storage
● 2 year warranty
Package Includes:
ES65 Total Station
BDC46 Battery Li-ion
CDC68 Battery Charger
EDC113B Power Cable w/flat pin
Lens cap
Lens hood
Tool pouch
Screwdriver
Lens brush
Adjusting pin straight type
Adjusting pin round type
Wiping cloth
Quick Manual
Laser caution sign-board (3R)
Registration Card (2yr)
Standard package list
Address card
Silica Gel(Large)
Carrying case
Carrying strap
Spesifikasi Total Station Topcon ES-65 Series
● Angle Accuracy 5″
● Battery 7.2v BDC46 (optional BDC70)
● Communications Bluetooth, RS-232C and USB Host 2.0
● Display LCD 192 x 80 dots
● EDM Phase Shift
● EDM Range 4,000m Prism, 350m Reflectorless
● Environmental IP66
● Internal Memory 10,000 points
● Keyboard 25 keys (soft function, operations, power on, light)
● Operating Temperature -20° to 60° C (-4° to 140° F)
● Operating Time 15 Hours
● Optical Plummet Yes
● Software TOPbasic
● Tilt Angle Compensation Dual Axis tilt sensor
