THE FIRST STEP INTO FASTER WORKFLOWS
With the functionality of many high-end robotic total stations, our ES series is full-featured and ready to tackle modern job sites.
- Long return of prism distance measurements, out to 4,000m
- TSshield™ web services for streamlined maintenance and security
- Topcon's LongLink™ communication at 300m
- Rugged IP66 environmental rating
- Provides 36 hours of battery life

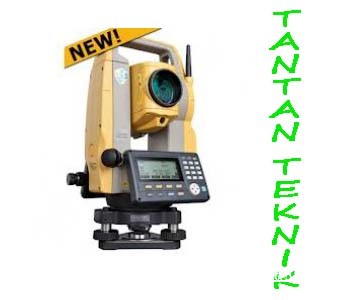

ES series Specifications
Print
General
Display
Dual backlit LCD
(ES-107 Single Display)
(ES-107 Single Display)
Battery Operation
Up to 36 hours
Wireless Connection
Bluetooth® Class 1
Operating Temperature*
-20ºC to +60ºC*
*Special Arctic version available (-30 to +50ºC)
Certifications and Standards
Dust/Water Protection
IP66
Angle Measurement
Min. Res/Accuracy
ES-101 0.5”/1”
ES-102 1”/2”
ES-103 1”/3”
ES-105 1”/5”
ES-107 1”/7”
Compensation
Dual-axis compensator
Distance Measurement
Prism EDM Range
4000m
(ES-107 3000m)
(ES-107 3000m)
Measuring Time
Fine: 0.9 sec
Rapid: 0.7 sec
Tracking: 0.3 sec
Rapid: 0.7 sec
Tracking: 0.3 sec
Communications
General
LongLink™
Bluetooth® Class 1
Bluetooth® Class 1
USB 2.0 Slot
(Host + Slave)
(Host + Slave)
RS-232C Serial
Complete With :
- 2 x Alumunium Tripod
- 1 x Prisma Polygon
- 1 x Single Prisma
- 1 x Range Pole
- 1 x Kabel data
- CD Software
