DIGITAL THEODOLITE RUIDE ET-02|| THEODOLITE DIGITAL RUIDE ET-02
Harga :
Rp. 12.500.000 / SET
Pembelian Minimal :
1 SET
Pembelian Maksimal :
5 SET
Pengiriman :
1 hari sejak pembayaran
Lokasi :
DKI Jakarta - Jakarta Barat
Update Terakhir :
19-03-2019 10:54
Dapatkan Spesifikasi Harga

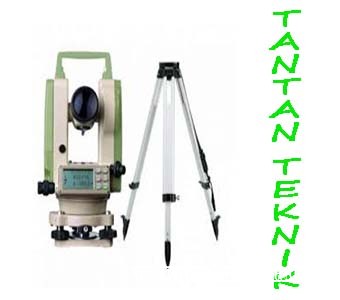

DIGITAL THEODOLITE RUIDE ET-02|| THEODOLITE DIGITAL RUIDE ET-02 Produk Terbaik dari
TANTAN TEKNIK Jual Total Station, Digital Theodolite, Waterpass, Hammer Test, GPS, Alat Ukur dan Survey, Alat Lab
Detail Produk
Features :
Specified large LCD screen for clear angle reading under all conditions.
Absolue encoding
5-key keyboard, built-in illumination
RS-232C data port, easy to connect with EDM.
| Theodolite ET Series The ET series Theodolites have Smart appearance, reasonable structure, practical functions. They are easy-to-use, and with excellent performance and reliable quality. |
|
|
| |
ET-02 |
ET-05 |
| Telescope: |
| Magnification: |
30X |
| Objective Lens: |
45mm |
| Overall Length: |
157mm |
| Stadai Ration: |
100 |
| Stadia Constant: |
0 |
| Image: |
erect |
| Field of View: |
1° 30" |
| Minimum Focus: |
1.4m |
| Resolving Power: |
3.0' |
| Electronic Angle Measurement: |
| Reading System |
Photoelectric detection by incremental encoder |
| Diameter of Circle (VHz): |
79mm |
| Minimum Reading: |
1"/5" (Selectable) |
| Accuracy: |
2" |
5" |
| Horizontal Angle |
Dual |
Dual |
| vertical Angle |
Dual |
Single |
| Display: |
| (LCD) Display Type |
2 sides, segment LCD in two lines |
| Level Sensitivity: |
| Plate Level: |
30"/2mm (30" per 2mm) |
| Circular Level: |
8'/2mm (8" per 2mm) |
| Auto Vertical Compensator: |
| System: |
Liquid-electric detection/plate level selectable |
| Working range: |
+3' |
| Accuracy: |
1" (Liquid-electric detection) 30""/2mm (plate level) |
| Optical Plummet Telescope: |
| Image: |
Erect |
| Magnification: |
3X |
| Focusing Range: |
0.5m - infinity |
|
